MiCROTEC GmbH - srl

World leading Wood scanning solutions. Because wood scanning belongs to the #1. Microtec is the most trusted scanning & optimization provider for the sawmilling and wood processing industry. We are setting the standards in this market since 1980.

Products

Card image cap

- LOG - LUMBER

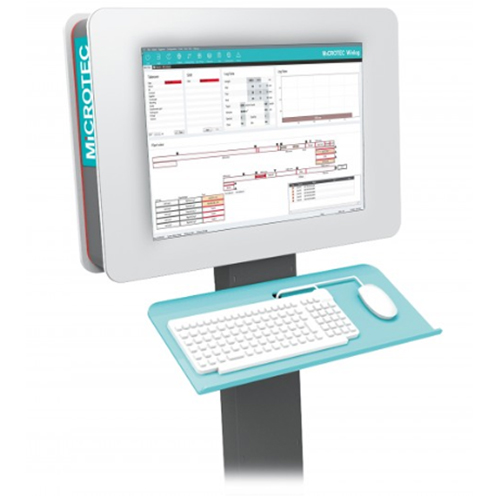

Winlog Sorting Optimization
Offers an all-encompassing control suite for your log sorting that guarantees an optimal use of your log and merchandizing yard. Winlog Sorting Optimization gathers measuring data over the entire production cycle and analyzes its efficiency, productivity and recovery based on real time production data.

Card image cap

- LUMBER
Wanescan: The perfect edge
Wanescan Secondary Breakdown Optimizer is Microtec’s proven solution for full profile wane scanning. It recognizes all dimensional irregularities, slabs and uneven edges of lumber and returns an exact wane profile of the board.

Card image cap

- LUMBER

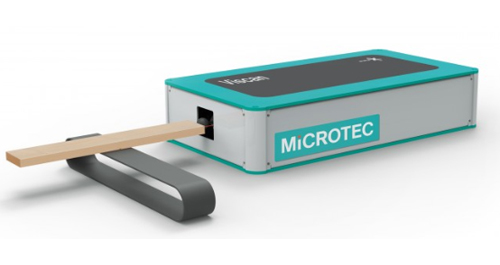

Viscan Strength Grader
The expert in strength grading is the best in class optical laser interferometer scanner for determining the MOE of lumber. It fulfills all relevant strength grading certifications worldwide. Viscan measures the board’s resonance frequency thanks to a high performance laser vibrometer that works independently of environmental interferences such as noise. Viscan Strength Grader reaches a measurement repeat accuracy of over 99 percent.

Card image cap

- LOG

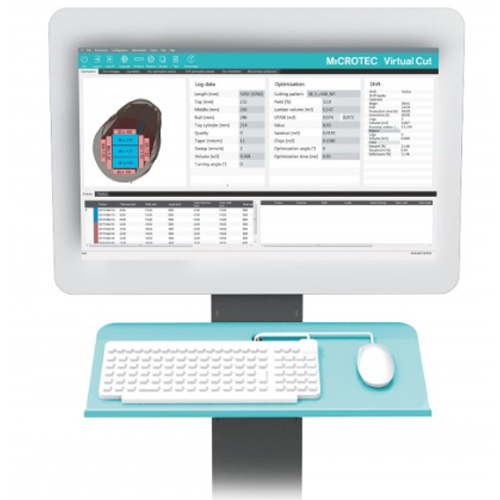

Virtual Cut Breakdown Simulation
Virtual cutting pattern optimization .It is the outcome of a successful collaboration between the companies TimberTec and Microtec. Combining their products, Microtec’s Maxicut Best Cut Solution and TimberTec’s Timber Commerce Cutting Pattern Calculation, the companies provide a solution which makes it possible to produce logs virtually with their possible cutting patterns when they are still in the bin.

Card image cap

- LUMBER
Variosort Lumber Sorter
It supervises the fully automated sorting and packaging, bundling and wrapping of lumber. It works with all mechanical systems such as horizontal and vertical sorters, green or dry buffers, etc. Variosort Lumber Sorter also manages trimming. 100% sorting overview.

Card image cap

- LUMBER
Trueye Virtual Light Curtain
It is your camera based monitoring system that allows you to virtually install light curtains and optimize and control your production flow. Install and position virtual light curtains digitally with one click at any point within your production line

Card image cap

- LOG - LUMBER

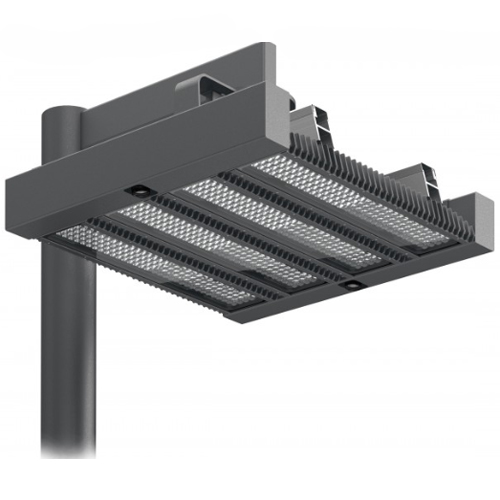

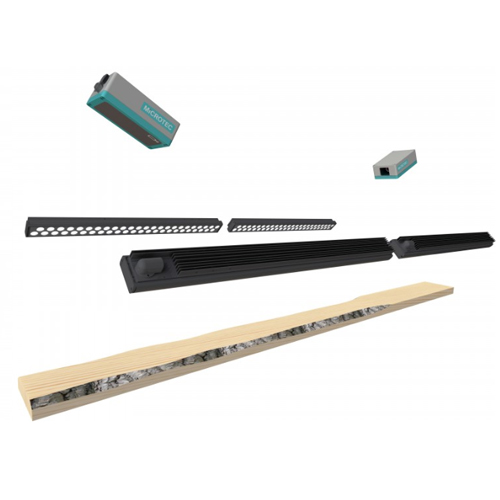

Smart Mill
Illumination, Network, 3D Imaging & Optimization for the Sawmill 4.0. It is the entrance ticket to your digital production. All information is available at your fingertips. Sawmill owners know their sawmill operations – hour by hour, day by day. Qualified data such as log yard inventory, dimension and quality of every log in the log yard or machinery movements and more are readily available. Microtec Mill Manager & Smart Mill continuously optimize your Sawmill 4.0 operations.

Card image cap

- LUMBER

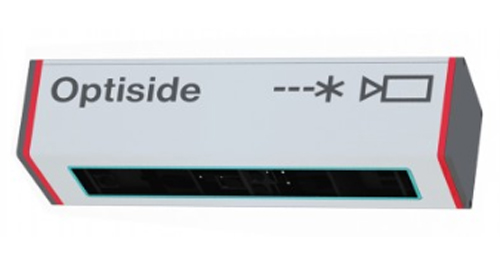

Optiside Front Side Scanner
It detects the cup on the end of the lumber piece in order to correctly orientate the boards. The scanner also measures the distance between annual rings and reliably identifies their orientation as well as the pith-side location. Cup and pith-side location for planer and glulam mills

Card image cap

- LUMBER

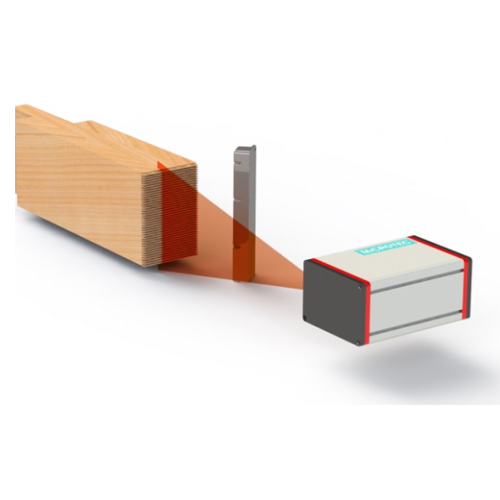

Optiglue Finger Joint Master
The intelligent Optiglue Finger Joint Master controls, monitors and optimizes your finger-jointing process. Dovetailed finger joint profiles are scanned with HD cameras using laser triangulation technology. The scanner recognizes poor dovetail joint milling immediately after the finger joint preparation.

Card image cap

- LUMBER
Optiedge Edger Optimizer
It is your wane scanner for edging and rip optimization installed directly on the alignment and infeed unit of your edger. Optiedge allows edging with precision. Lumber is scanned and optimized directly after the board has been centered and fixed on the saw infeed. Edging with precision

Card image cap

- LOG - LUMBER
Microtec Mill Manager
Optimize your overall mill processes & increase the productivity of your operations. It is your all encompassing mill wide control and reporting suite displaying real time production information. A production monitoring tool that offers access to up-to-the-minute reports and data for all your scanning & optimization systems and provides an instant analysis of all machine centers in your mill.

Card image cap

- LOG

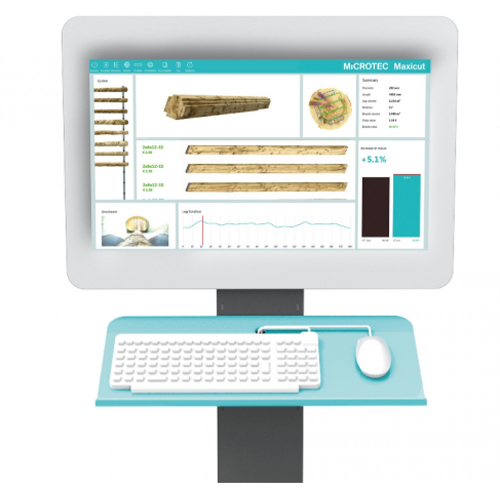

Maxicut Best Cut Solution
Provides a new standard of breakdown optimization. It considers geometry, quality and resale value of final products as well as customer specific product quality requirements while evaluating the optimum cutting pattern of logs. The software simulates and calculates the best possible yield and lumber recovery that can be obtained by combining different final products. Maxicut Best Cut Solution determines the saw blades positions of the cutting machines. With Maxicut’s sharp and accurate cutting pattern optimization you can significantly increase the yield of your sawmill.

Card image cap

- LUMBER

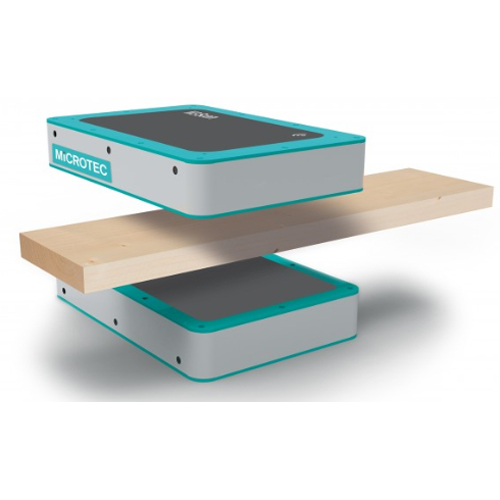

M3 Scan Moisture Meter
It allows quick and accurate measurement of your lumber moisture content. The modular system measures dried lumber, automatically compensating for the influence of density. The scanner works with most common wood types and sizes, and measures lumber in an extremely precise and repeatable fashion.

Card image cap

- LOG

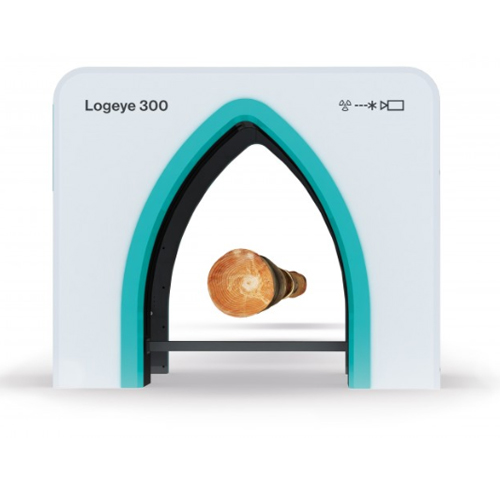

Logeye 300 Multi-Sensor Quality Scanner
Enables log sorting according to diameter, length, curvature, taper and quality features as well as bucking and primary and secondary breakdown optimization, extracting the highest value for your plant. Rock-solid hardware, sharp optoelectronics and innovative technology give you the power to increase efficiency, maximize productivity and optimize your production-mix based upon your priorities and value parameters.

Card image cap

- LOG

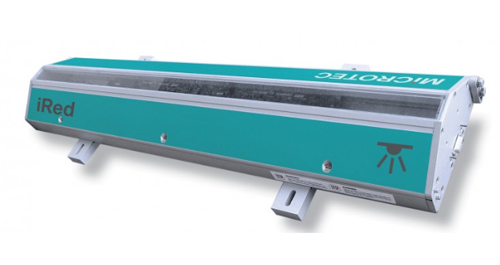

1D-Infrared scanner
iRed is a fast and straightforward infrared measurement solution determining log outlines for basic optimization tasks. The solid measuring module accurately recognizes diameter, length, taper and volume of logs, proven in over 1,500 installations worldwide. iRed is the right choice for determining diameter, length, taper and volume of your logs. iRed can be used for all software applications needing basic shape measurement.

Card image cap

- LOG

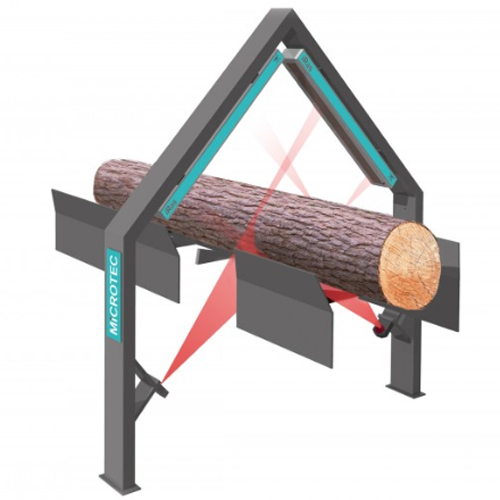

Infrared geometry measurement
iRas Angle Scanner is a two-plane angle infrared scanner for log measurement. The scanner measures the dimensional characteristics of logs. The angular arrangement of the modules avoids accumulations of dirt and significantly reduces downtimes and maintenance costs. iRas Angle Scanner needs no interruption of the conveyor. Thanks to specifically designed filters, iRas is dust insensitive and measures reliably regardless of light influences. This is why iRas Angle Scanner is an essential solution for open-air measuring systems that qualifies for all log and merchandizing yards and saw infeeds.

Card image cap

- LOG

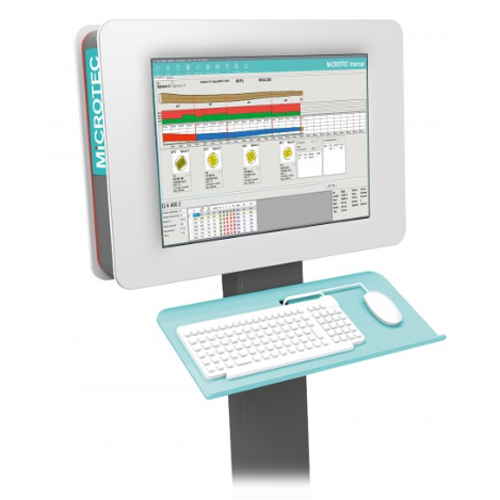

Interopt Bucking Optimizer
Calculates the optimum merchandizing solution according to dimension, curvature, taper and quality information and optimizes bucking according to real time priorities. Bucking solutions are optimized in various areas within a log to optimize bucking according to the overall resale value of the recovered lumber. Interopt Bucking Optimization controls the bucking saw and the sorting line.

Card image cap

- LUMBER
ID Scan Board Tracker
Your boards always reach their exact destination box. The scanner recognizes every board immediately at any point in your production line. ID Scan tracks your lumber and keeps an overview during all production stages.

Card image cap

- LUMBER
Microtec Grade Scanner
It recognizes manually applied grade, trim and sort marks on lumber and interprets them. Installed on the trimming/sorting line Grade Scanner reads the manual mark assigned by the grader, correlates the corresponding quality or command and sends this information on to the trimming or the sorting system.

Card image cap

- LUMBER
Goldeneye 700 Multi-Sensor
The new Goldeneye 700 Multi-Sensor Quality Scanner and Certified Strength Grader localizes and recognizes every detail of your lumber with unbeatable precision. Certified value optimization.

Card image cap

- LUMBER

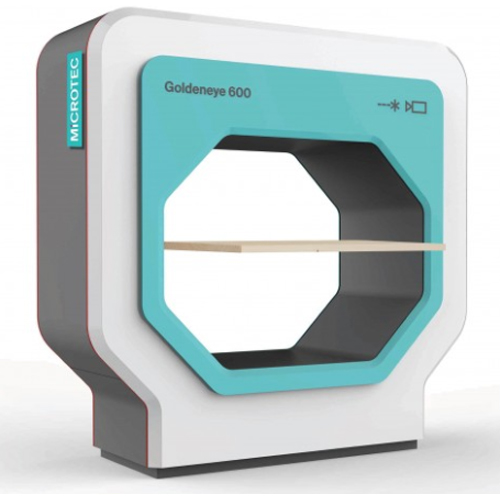

Goldeneye 600 Multi-Sensor Quality Scanner
It scans large boards and panels up to 1.8 meters wide. Geometric, visual as well as X-ray Multi-Sensor cameras and sensors localize all types of knots, as well as cracks, discoloration, pitch pockets, bark, pith, wane, distortion and other dimensional defects as well as inner properties.

Card image cap

- LUMBER

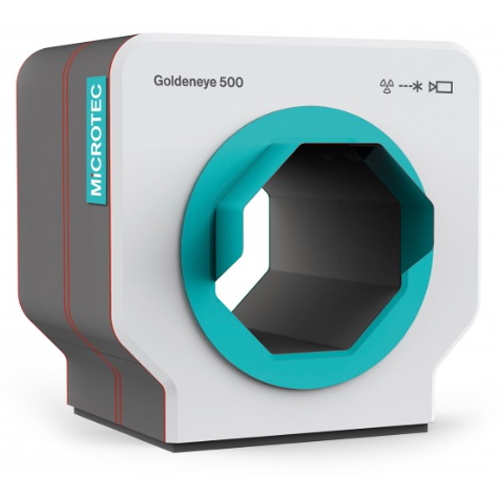

Goldeneye 500 Grading, chopping and sorting
The new series comes with next generation X-ray technology sensors and state-of-the-art cameras and components. Award winning design and functionality are combined with the most accurate scanning results achievable by a lumber scanner for grading and quality measurement.

Card image cap

- LUMBER
Goldeneye 300 Multi-Sensor Quality Scanner
Reliably recognizes wood defects, grades and classifies lumber with precision. It optimizes lumber for chop processing and sorting, according to customer specific product quality requirements.

Card image cap

- LUMBER

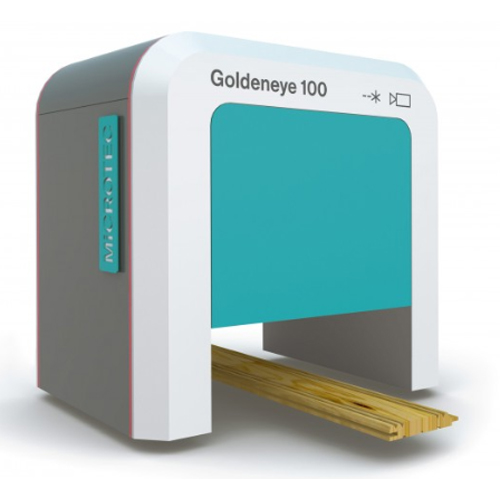

Goldeneye 100 Multi-Sensor Quality Scanner
It is the measurement solution for high quality profiled boards coming out of the moulder. The scanner sorts out low quality boards and mouldings with dimensional defects to guarantee constant high quality output of your profiled boards. 100% moulding control for perfect profiled boards

Card image cap

- LOG

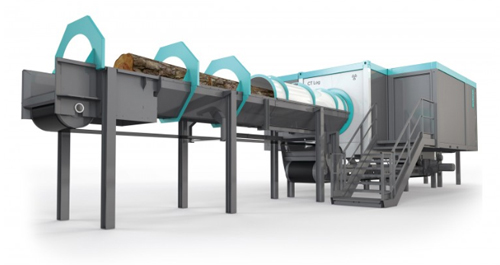

CT Log Computed Tomography
Allows continuous, qualitative and full 3D log reconstruction. For the first time, size and position of internal wood defects can be accurately described in all three dimensions. Using the internal defects, CT Log evaluates appearance, quality and strength and assesses their impact on the final products before the physical breakdown of the log. Sawing and bucking solutions are continuously optimized based on the highest quality and resale, allowing production to be managed according to real-time priorities.

Card image cap

- LUMBER
3D Board Shape Scanner
The Curvescan 3D Board Shape Scanner reliably recognizes distortion of lumber such as twist, bow, spring and cup in lineal or transverse transport direction. It recognizes twist, bow, cup and spring after breakdown or kiln drying

Card image cap

- LUMBER

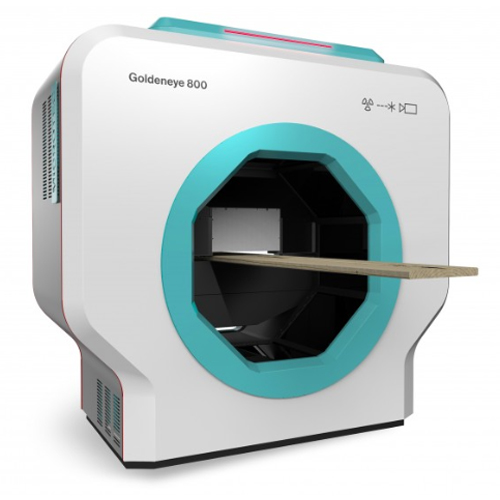

Goldeneye 800 Multi-Sensor Quality Scanner
Maximizes recovery for high-speed planer mills and manufacturers of construction lumber and high-speed applications. Ruggedness, speed and measurement precision are key for high-performance planer mills and manufacturers of construction lumber products.

Card image cap

- LUMBER
Multi-Sensor Quality Scanner
The world’s no.1 Multi-Sensor Quality Scanner in transverse transport with optional X-ray, the Goldeneye 900, is a showcase of the innovative technological capabilities of Microtec. Goldeneye 900 determines the overall quality of green, dry or planed lumber in one pass from all four sides. Value optimization before and after kiln drying is possible as the Goldeneye 900 grades both rough and planed lumber.

Videos

transverse lumber scanner

Log 360° X-ray CT-Sawing Optimization

CT Log Scanner HIT Torgau

News

Responsive image

Fiskarheden buys CT Log system

2018-01-11

system for sawmill
